OZER X CHANNEL WIRELESS 4.2mm. Stroke. 3 Grips.

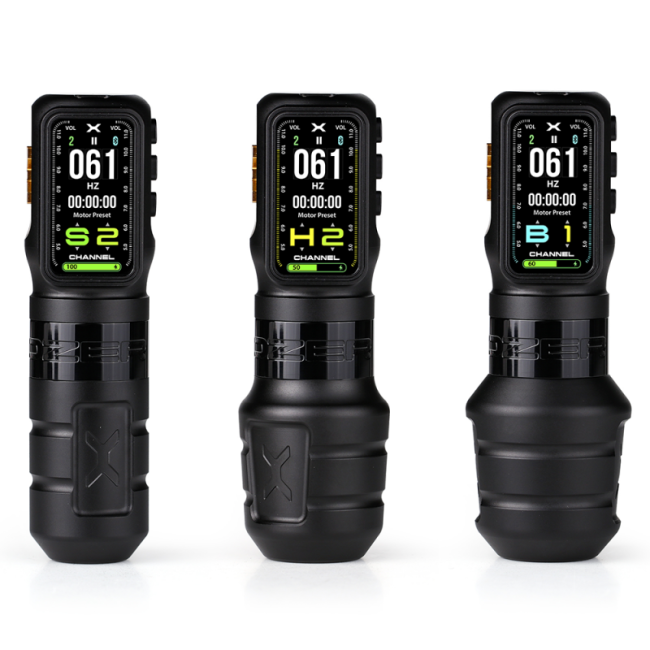

OZER X Channel Machine

The OZER X Channel Machine was developed for professional use. It combines technical innovation with clear functionality and is aimed at tattoo artists who expect reproducible results, consistent performance, and full control over every step of the process.

Precise stroke lengths – clearly defined for different techniques

The machine is available in three fixed stroke lengths, each optimally tailored to specific applications:

• 3.5 mm – ideal for fine lines, sensitive shading, and detail-oriented work

• 4.2 mm – balanced for lining, transitions, and even color packing

• 5.0 mm – maximum assertiveness for strong saturation and dense colors

Each variant is available in black, green, or blue.

8-channel brushless motor with proprietary drive algorithm

At the heart of the device is a sensor-controlled 8-channel brushless motor (outrunner, 20 × 15 mm), controlled by a specially developed drive algorithm.
The result is exceptionally smooth running, reduced vibrations, and constant power output – even during long sessions and at low frequencies.

Three operating modes & ten power levels

The performance characteristics can be precisely adjusted to suit skin type, technique, and personal working style:

• S (Soft) – S1–S4: for fine shading, soft transitions, and sensitive skin

• B (Balance) – B1–B3: universal for clean lining and even color packing

• H (Hard) – H1–H3: powerful punch for deep, rich pigments

The H1 mode also offers constant speed control in the extended frequency range of 36–200 Hz, without any drop in performance at low frequencies.

Voltage Follow & integrated protection

With Voltage Follow, only the desired frequency (66–200 Hz) is set – the voltage regulates itself automatically. This minimizes misadjustments and increases process reliability.
The integrated hot-swap technology provides reliable protection against short circuits and contributes to the longevity of the electronics.

Memory function for efficient working

Up to three individual combinations of mode and frequency can be stored. The machine reliably retrieves these settings and enables quick switching between different working styles.
